PF150 Plate Fix

The PlateFix PF150 was born from the double-disc fixings by joining the discs into a single piece profile base plate with an outer clamping plate for a stronger multipurpose balustrade fixing. This enables the PF150 to be used with single or double fixings and it can be used vertically, horizontally, angled or a combination of the above.

Shop PF150 Plate Fix

PF150 Plate Fix Applications

PF150 Plate Fix Fitting

pf150

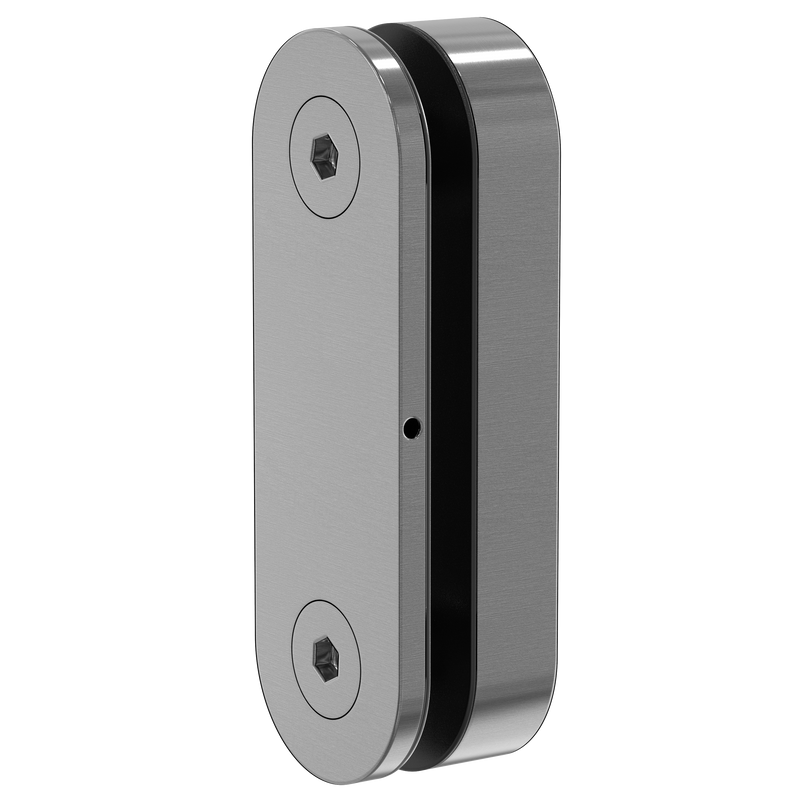

PF150 Plate Fix Fitting

Single or Double point fixing. 20mm standoff spacer and 6mm outer plate. 150mm long with 50mm radus ends.

Available in Satin Stainless and Black
PF150 Fitting with Round Cover

pf150

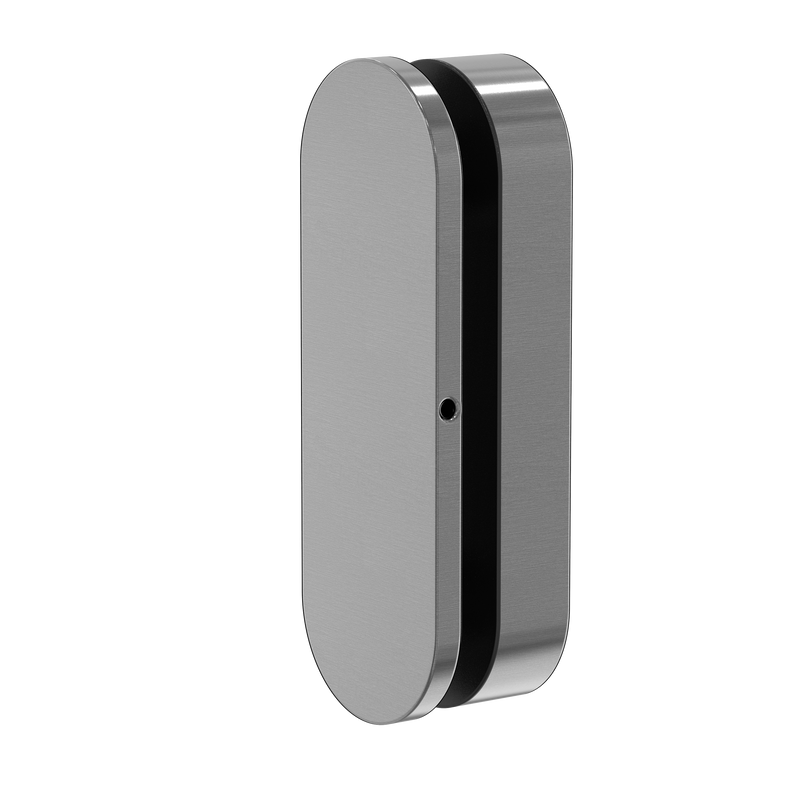

PF150 Fitting with Round Cover

Single or Double point fixing. 20mm standoff spacer and 6mm outer plate. 150mm long with 50mm radus ends.

Available in Satin Stainless and Black
PF150 Fitting with Rectangle Cover

PF150

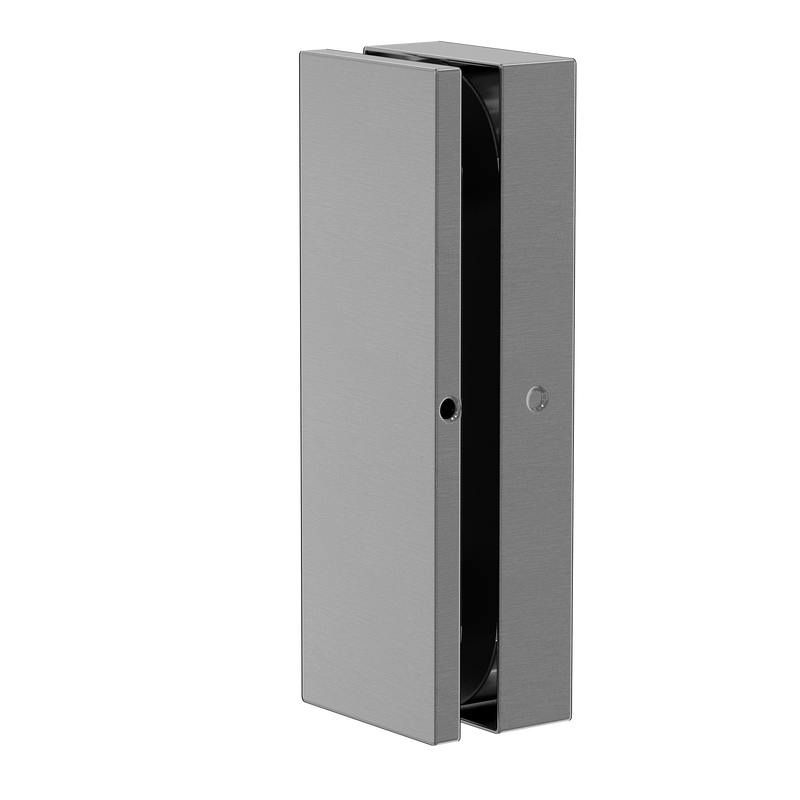

PF150 Fitting with Rectangle Cover

Single or Double point fixing. 20mm standoff spacer and 6mm outer plate. 150mm long.

Available in Satin Stainless and Black
scope of use

PF150 Plate Fix Scope of Use

The PlateFix PF150 was born from the double-disc fixings by joining the discs into a single piece profile base plate with an outer clamping plate for a stronger multipurpose balustrade fixing. This enables the PF150 to be used with single or double fixings and it can be used vertically, horizontally, angled or a combination of the above.

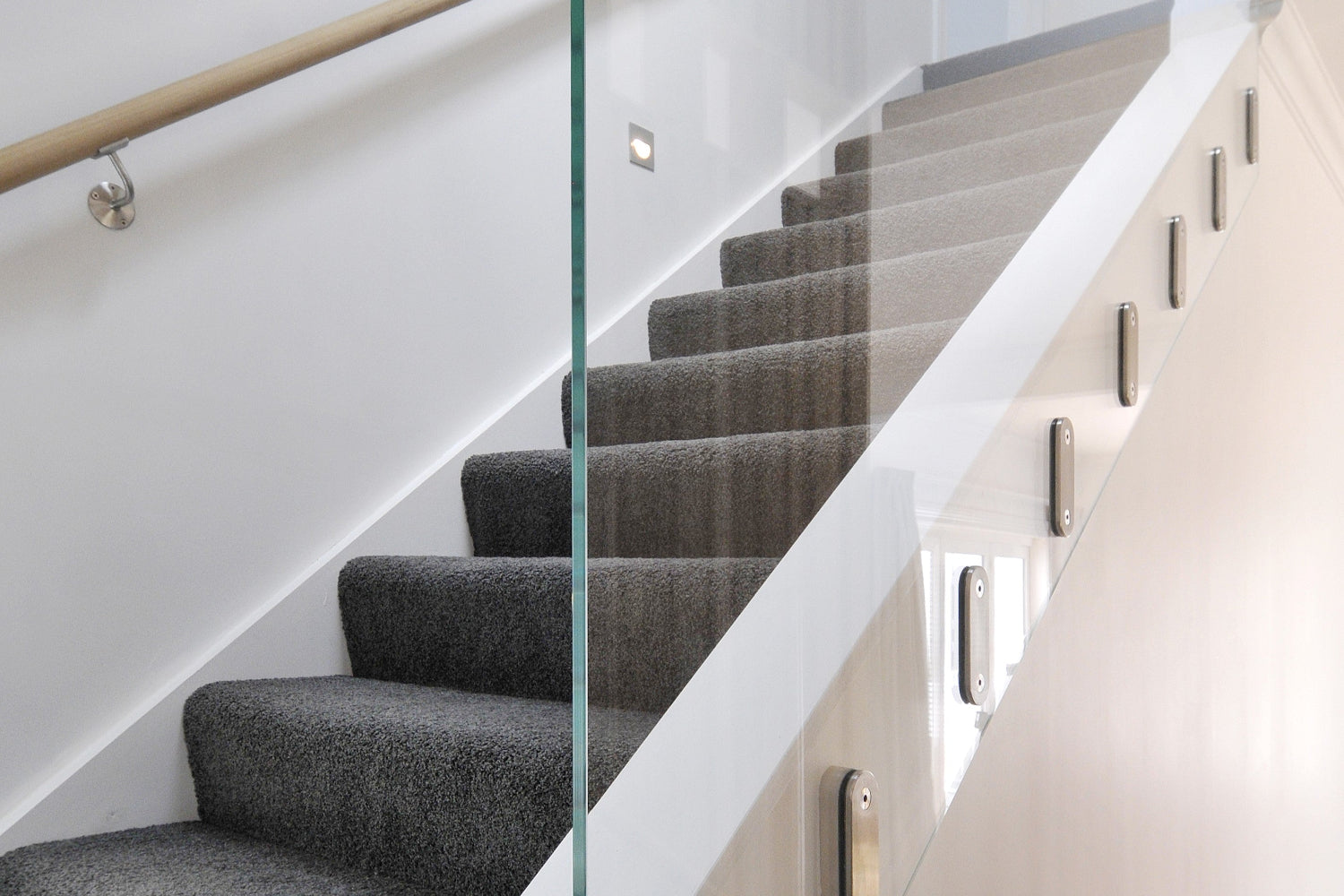

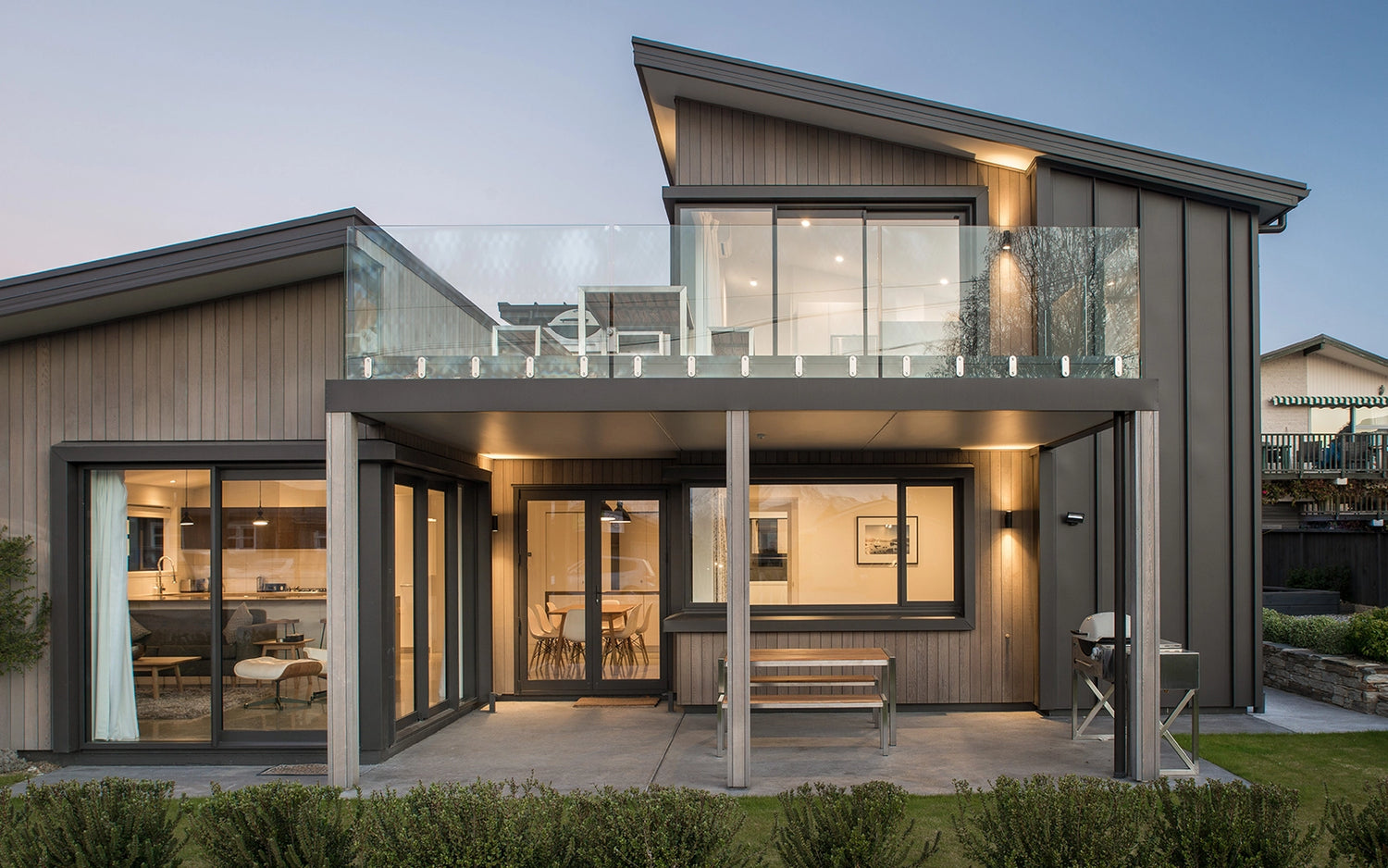

  • The PlateFix PF150 system is ideal for external balconies and stairs — as well as for internal stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces
  • When required an interlinking top rail finishes off the system, producing a low profile modern look
  • See PF150 Install Instructions
  • Complies with AS/NZS 1170:2002, NZS 4223.3.2016
  • NZ Building Code B1, F2, F4 and F9
Occupancy Type
  • Suitable for occupancy types A, B, E, and C3. (subject to glass & fixing type)
  • Occupancy Types as per AS/NZ 1170.1.2002.
Windzone
  • Exceeds the wind loading for all Wind Zones up to and including Very High Wind Zone as set out in NZS 3604:2011
  • Max design Wind pressure subject to glass type and fixing method.
Shop PF150 Plate Fix

resources

PF150 Plate Fix Resource Hub
