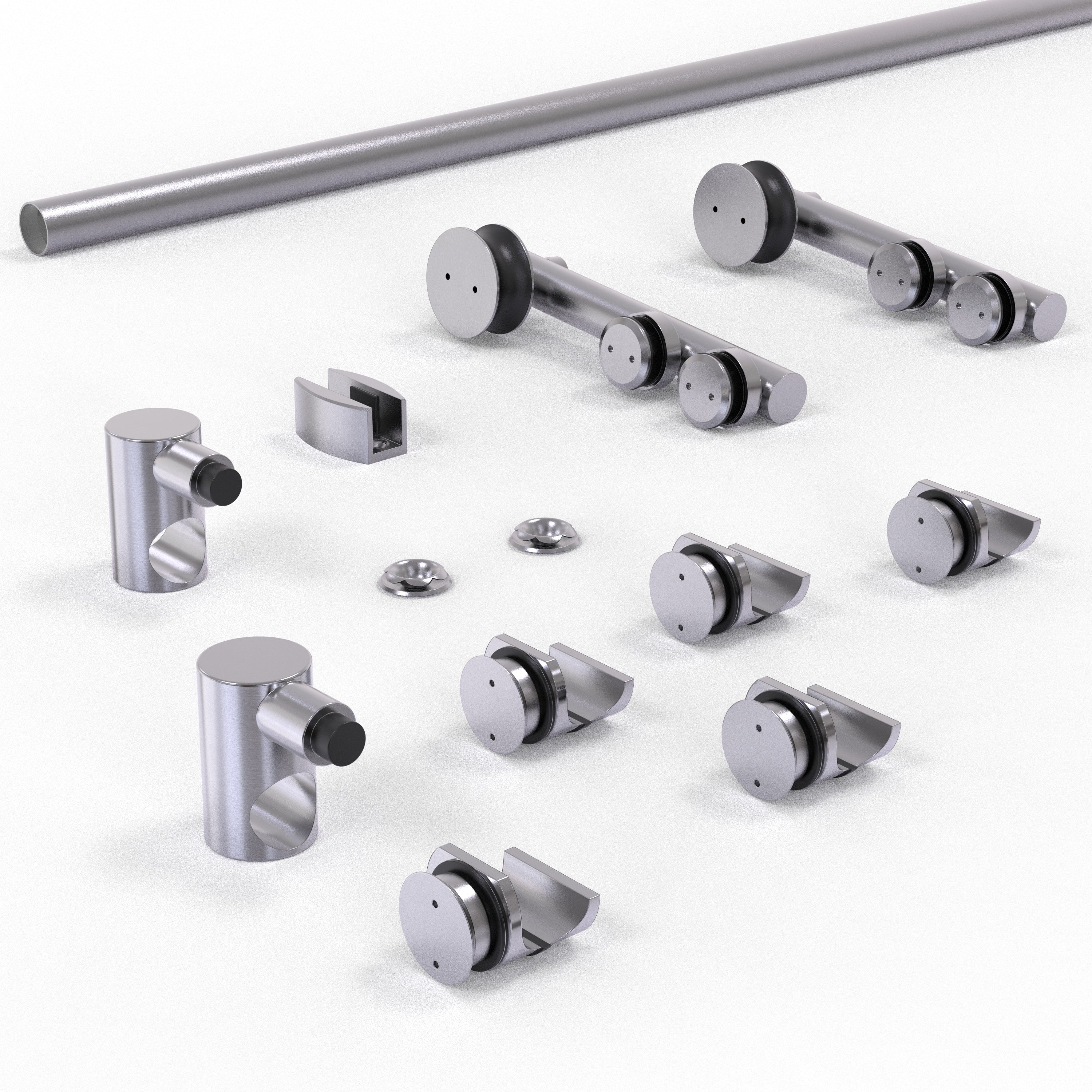

Key Features

  • 25 mm diameter stainless steel top track
  • Fixes to walls or glass panels with purpose-designed stainless steel fixings
  • Stainless steel hangers with nylon rollers and needle bearings for smooth, quiet operation
  • Adjustable stainless steel floor guide to suit varying glass thicknesses
  • Satin stainless steel track stops with rubber bumpers
  • Suitable for door widths 700–2000 mm
  • Maximum door height 2500 mm
    Supports doors up to 120 kg
  • ±5 mm door alignment adjustment via the main roller hub
  • Supplied in satin stainless steel as standard
  • Polished, black, and powder-coated finishes available on request

RESOURCES

Point Fix Sliding Door System

This section provides access to technical documentation, specifications, and supporting information for the Point Fix Sliding Door System. All available resources are supplied to assist with product selection, installation, and system understanding.
