Opus SD50™ Double Disc

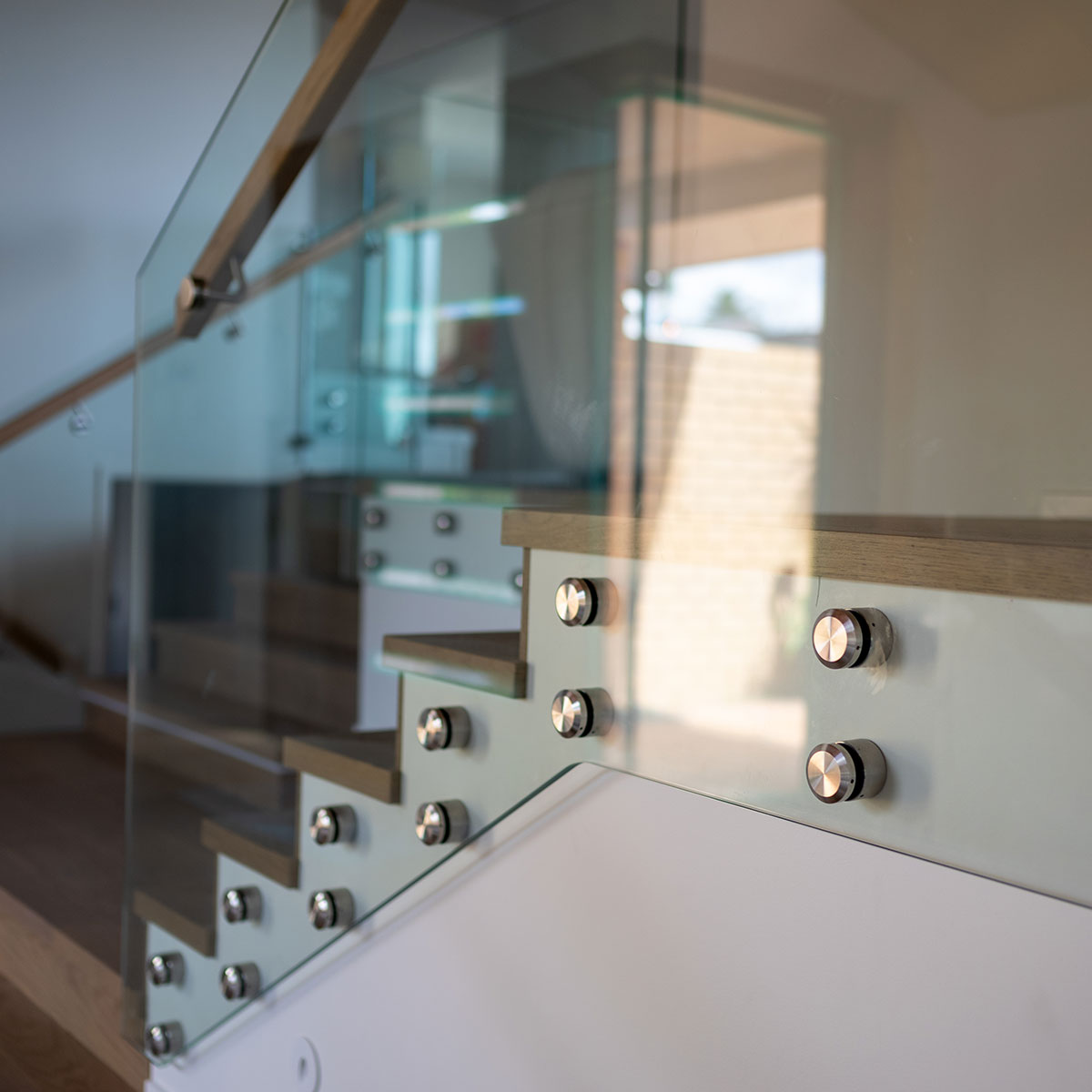

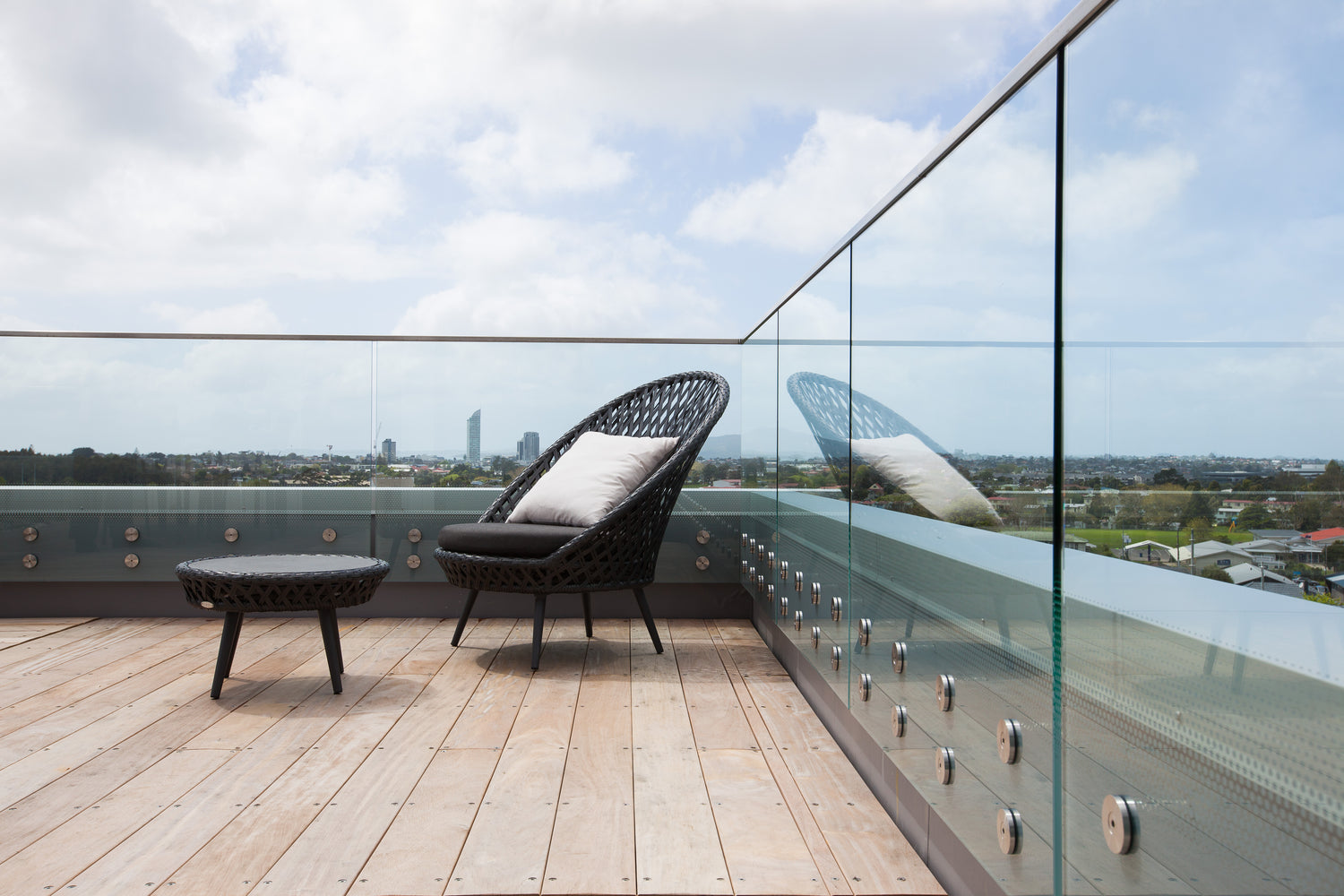

The SD50 Double Disc system is a 50mm diameter traditional stainless steel anchor fixing offering, ideal for those seeking a more industrial frameless glass balustrade aesthetic. The standoff body sets the glass panels out from the deck to assist with water draining and cleaning. The system is ideal for external/internal balconies, stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces and is finished with an interlinking top rail (where required) in a choice of stainless steel or powder coat colours to suit.

Shop Opus SD50™ Double Discs

Opus SD50™ Double Disc Systems

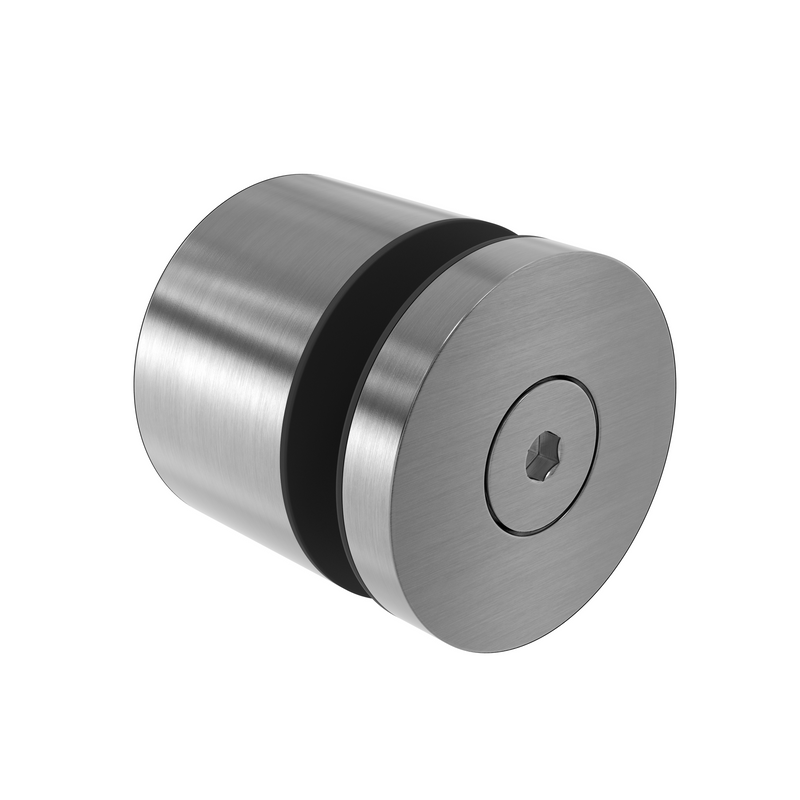

Screw Head

SD50 DOUBLE DISC

Screw Head

50mm diameter assembly with stand-off, and flat edge exposed screw head.

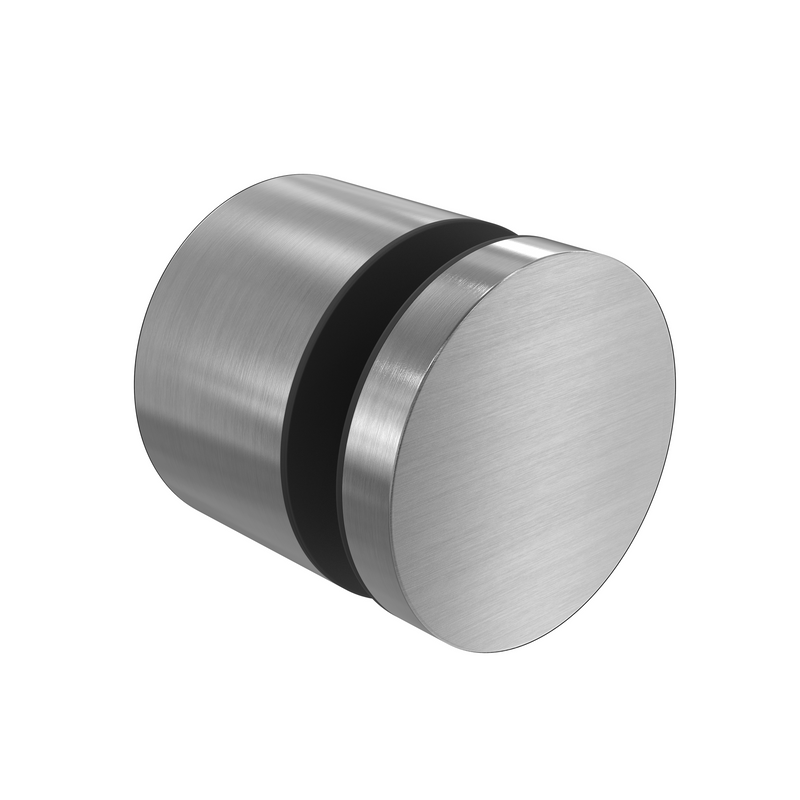

Flat Head

sd50 double disc

Flat Head

50mm diameter assembly with stand-off, and flat edge concealed stepped head.

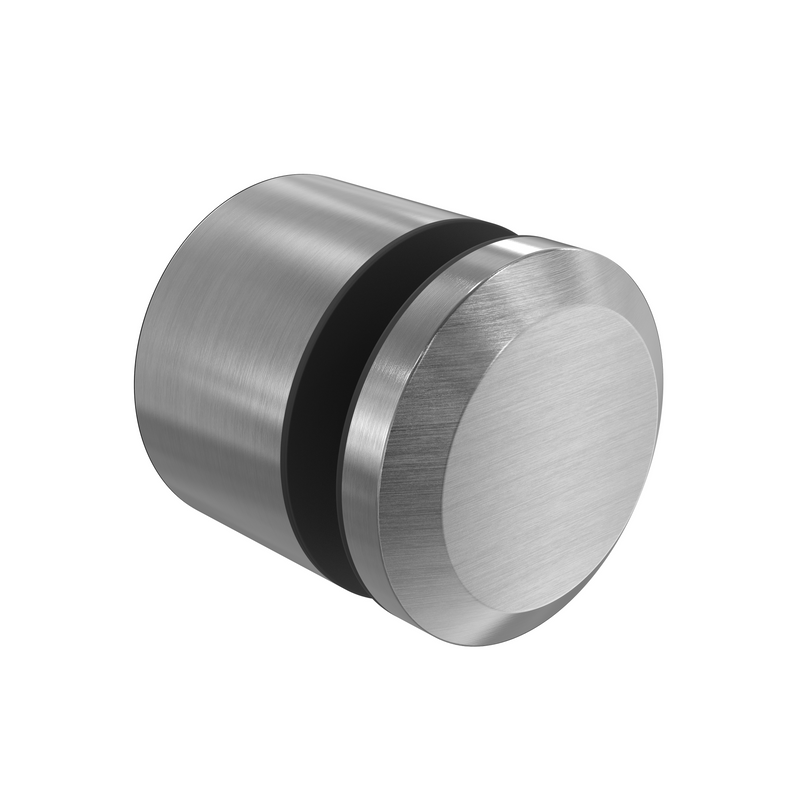

Beveled Head

sd50 double disc

Beveled Head

50mm diameter assembly with stand-off, and beveled flat edge concealed head.

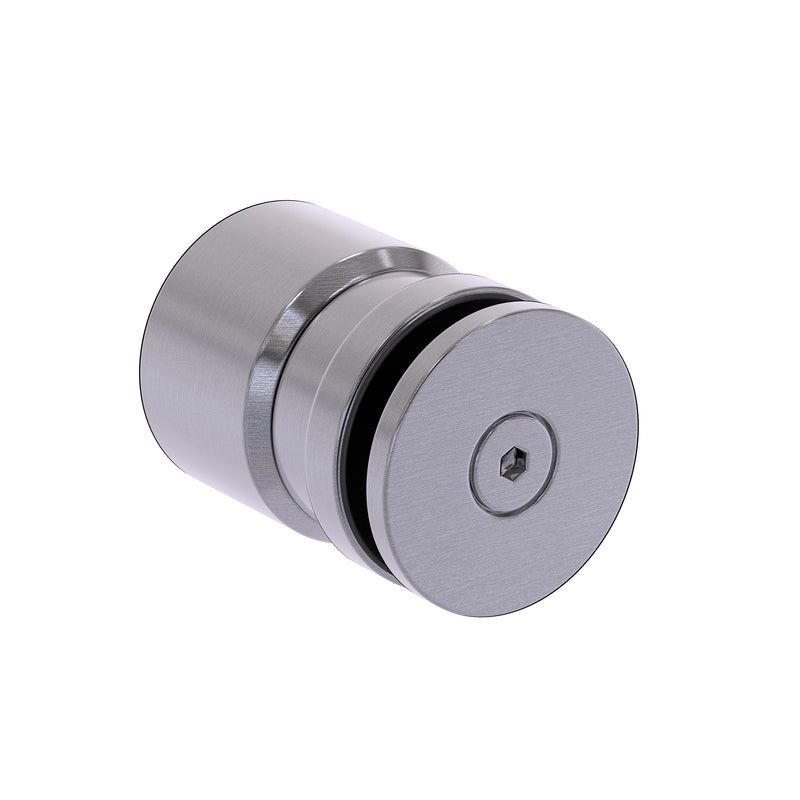

Adjustable Screw Head

sd50 double disc

Adjustable Screw Head

50mm diameter assembly with an adjustable stand-off, and flat edge exposed screw head.

scope of use

Opus SD50™ Scope of Use

The SD50 Double Disc system is a 50mm diameter traditional stainless steel anchor fixing offering, ideal for those seeking a more industrial frameless glass balustrade aesthetic. The standoff body sets the glass panels out from the deck to assist with water draining and cleaning.

Building Application:
Disc/Button Side Fixed

Building Type:
Residential & Commercial Buildings

Occupancy Type:
A, B, E, C3 & Pool Fences

  • The SD50 Double Disc System can be side fixed into Timber, Steel or Concrete.
  • The SD50 Double Disc has an adjustable version that allows installers to adjust the glass panels once in place, with a turn of the body. Single sided adjustment and locking, eliminates the need for scaffold or external access during glass adjustment around balcony’s or other areas protecting a fall saving on installation time.
  • Available in 4 standard styles and up to 6 different models (availability TBC).
  • Suitable for Residential and Commercial situations.
  • Suitable for up to Extra High wind zones (subject to glass requirements)
  • Accommodates 12mm to 17.52mm Glass types. (larger glass applicable on request)
  • Simple to install align and adjust.
  • Comes standard in Satin or Polished Stainless and Matt Black (on request). Can be powdercoated to any colour of your choice POA.
  • Not suitable for C5 Occupancy — please refer to the Tough Lock commercial channel, which is certified for C5 Occupancy
  • Must be designed and installed in accordance with the technical literature from Opus Hardware
  • Where used as pool fencing, must be designed and installed following specific guidelines and hardware to meet NZBC F9
