Balustrade & Pool

ToughLock Channel

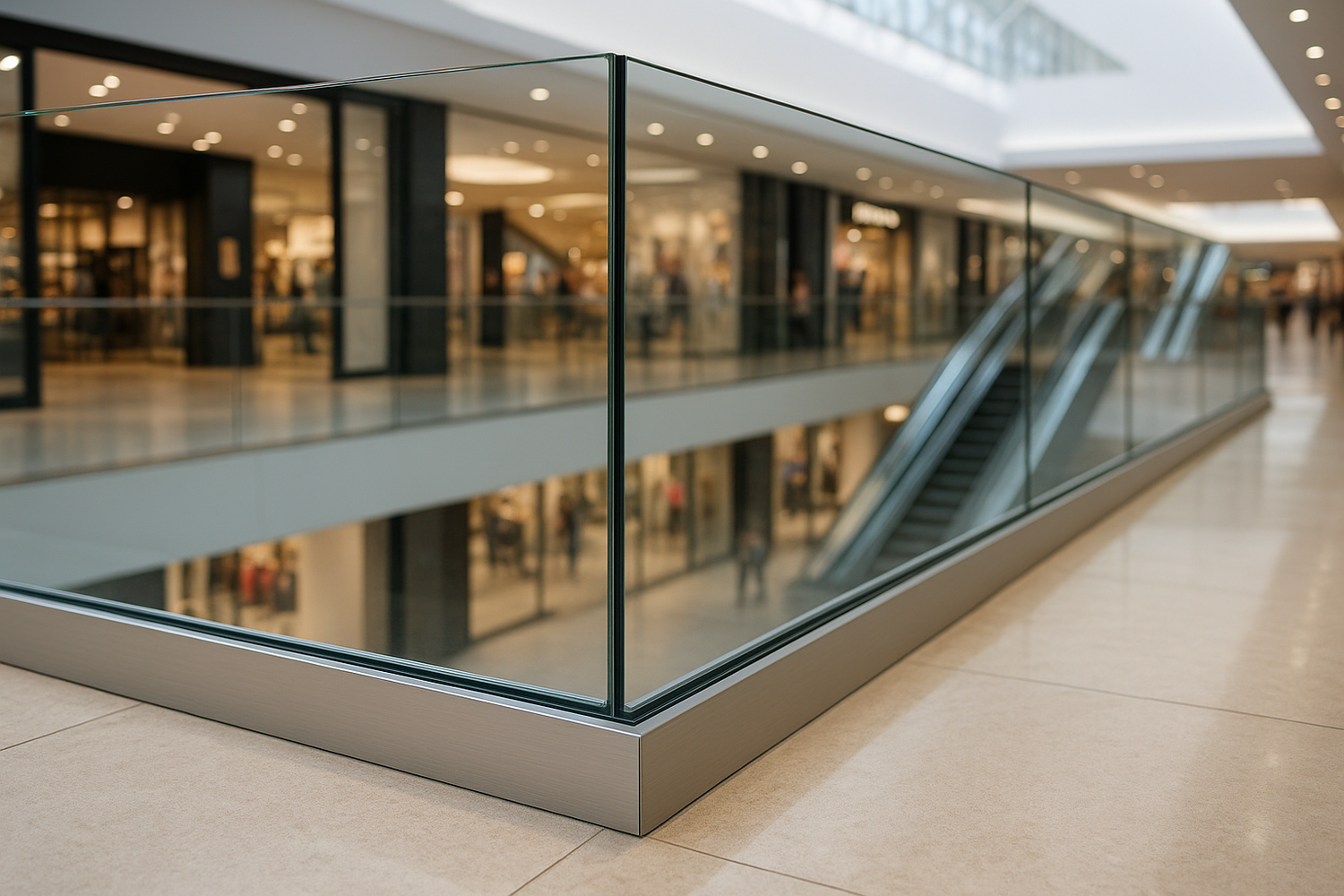

ToughLock is a premium C5-rated glass channel system, engineered to deliver exceptional strength, safety, and style for commercial spaces. Designed to suit from 21.52mm to 33mm, Glass including Toughened Laminated SentryGlas®. ToughLock offers the perfect solution for shopping malls, stadiums, airports, and other high-traffic environments where durability matters. Built for the most demanding architectural projects — ToughLock stands strong where it counts.

Shop ToughLock

Tough Lock Applications

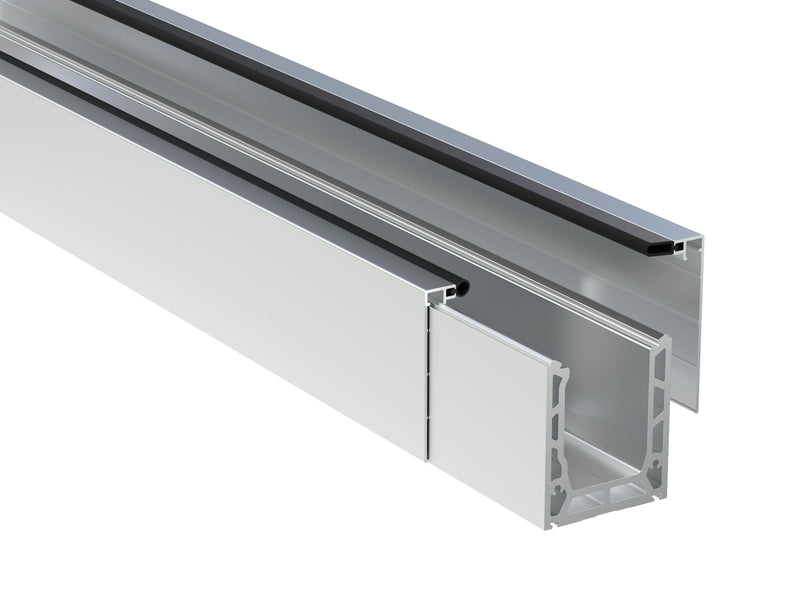

Base / Top Fix System (TL12OB)

tough lock

Base / Top Fix System (TL12OB)

Main Channel x1
Glass Clamps x10 (1x Box)
Side Cladding Covers x2
Rubber Gaskets x2
Joining Pins x2

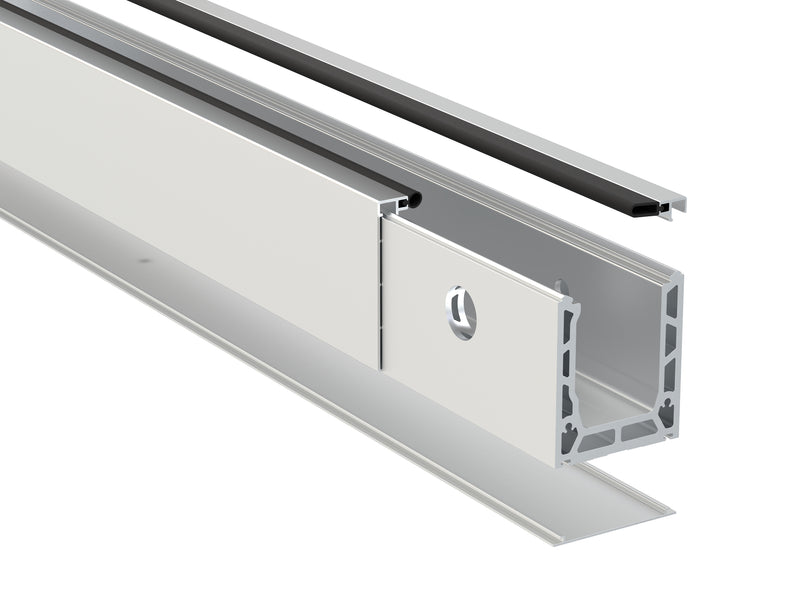

Side / Face Fixed System (TL12OS)

tough lock

Side / Face Fixed System (TL12OS)

Main Channel x1
Glass Clamps x10 (1x Box)
Side Cladding Cover x1
Top Seal Strip x1
Bottom Cladding x1
Joining Pins x2
Rubber Gaskets x2
scope of use

ToughLock Scope of Use

ToughLock provides a secure and efficient solution for installing frameless glass in demanding commercial environments. Engineered for simple, precise installation, it utilises advanced SmartLock™ Technology to allow maximum panel adjustment — ensuring fast, straightforward installation on site. The system supports a wide range of glass thicknesses (21.52mm to 33mm), making ToughLock one of the most versatile C5-rated balustrade solutions on the market. The channel is predrilled and perfectly suited for both base-fix and side-fix applications, offering maximum flexibility from a single profile. ToughLock is ideal for public spaces such as transport hubs, stadiums, shopping centres, and commercial venues where safety and durability are paramount.


  • Profile: 97 x 117 x 3000mm,
  • Weight: Base 29kg, Side 36kg
  • Colour: Silver
  • Max Force Loading: 3.0kN
  • Glass thickness: 21.5mm-33mm
  • Max Glass height: 2000mm
