Vortex Post System
The Vortex glass railing system offers a sleek contemporary design that is perfect for modern architectural projects. The Vortex post system can be used as a balustrade, pool fence, wind break and much more!
Balustrade & Pool
Shop Vortex Post System
Base Fixed Vortex Post (VX1)
vortex post system

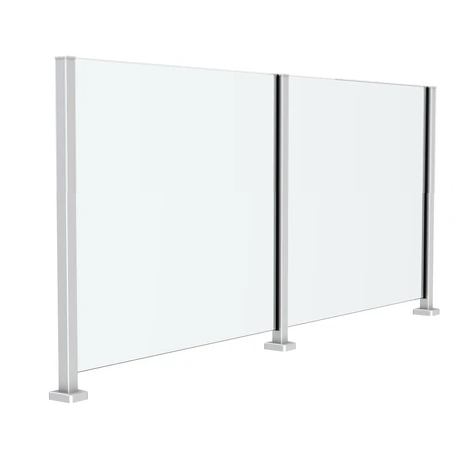

No Handrail
1.2m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
vortex post system

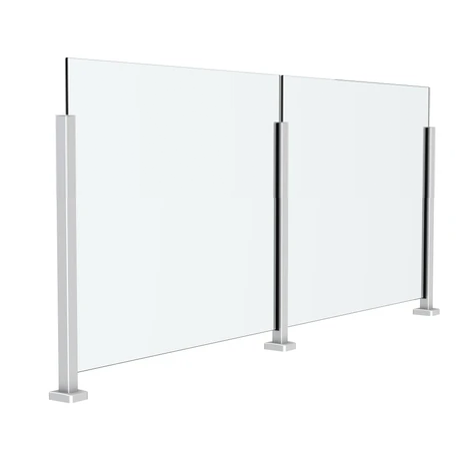

Glass above Post
1.2m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
vortex post system

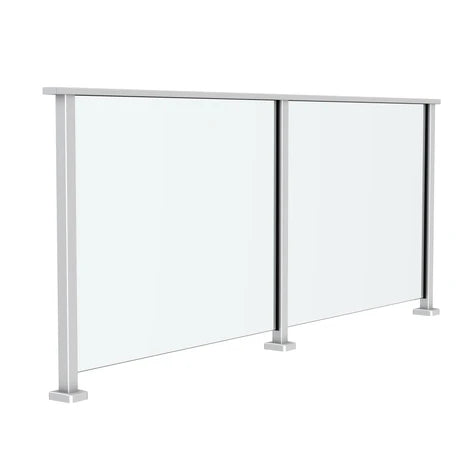

Rail on Glass
1.2m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
vortex post system

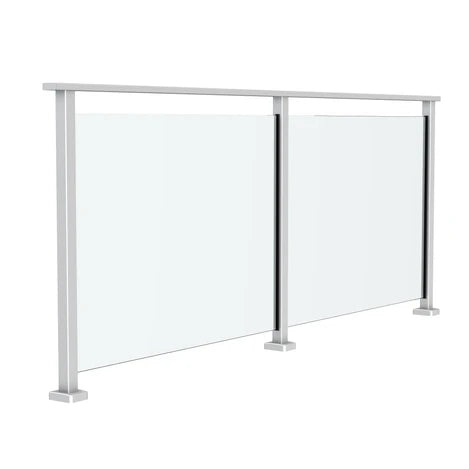

Rail Above Glass
1.2m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
Side Fixed Vortex Post (VX2)
vortex post system
No Handrail
1.4m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
vortex post system

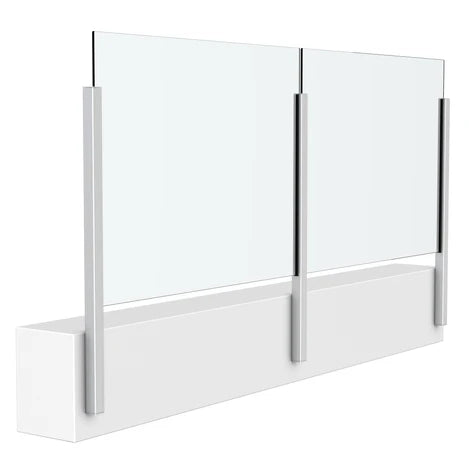

Glass above Post
1.4m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
vortex post system

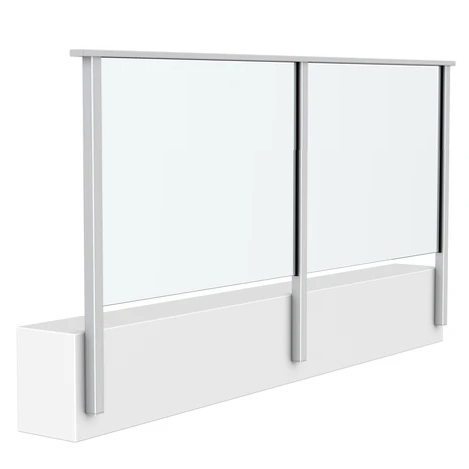

Rail on Glass
1.4m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
vortex post system
Glass above Post
1.4m Prefabricated Post. Designed for use with four glass panel installation methods. Features a 60 x 60 mm profile and is compatible with 10 mm toughened glass and 13.2 mm laminated glass.
scope of use
Vortex Post Scope of Use
VORTEX is an ideal commercial or residential railing system, where the emphasis is on creating an open, light-filled space. The use of high-quality laminated on toughened glass and aluminium posts ensures that the system is both durable and easy to maintain. Additionally, the minimalist design ensures that the system does not detract from the surrounding architectural elements, but rather enhances them, along with maintaining maximum unobstructed views.
Suitable for occupancy types A, A(other) & C3.
Suitability subject to design wind pressure, required barrier height, glass type, mounting structure & fixing type
- Complies with AS/NZS 1170:2002, NZS 4223.3.2016
- NZ Building Code B1, F2, F4 and F9
- Suitable for Residential, Commercial and Retail situations.
- Simple to install, align and adjust.
- Suitable for up to Extra High wind zones
- Accommodates 8mm to 17.52mm Glass.
- No holes or notches required.
- Comes in standard colours, and can be powder coated to any colour of your choice POA.
